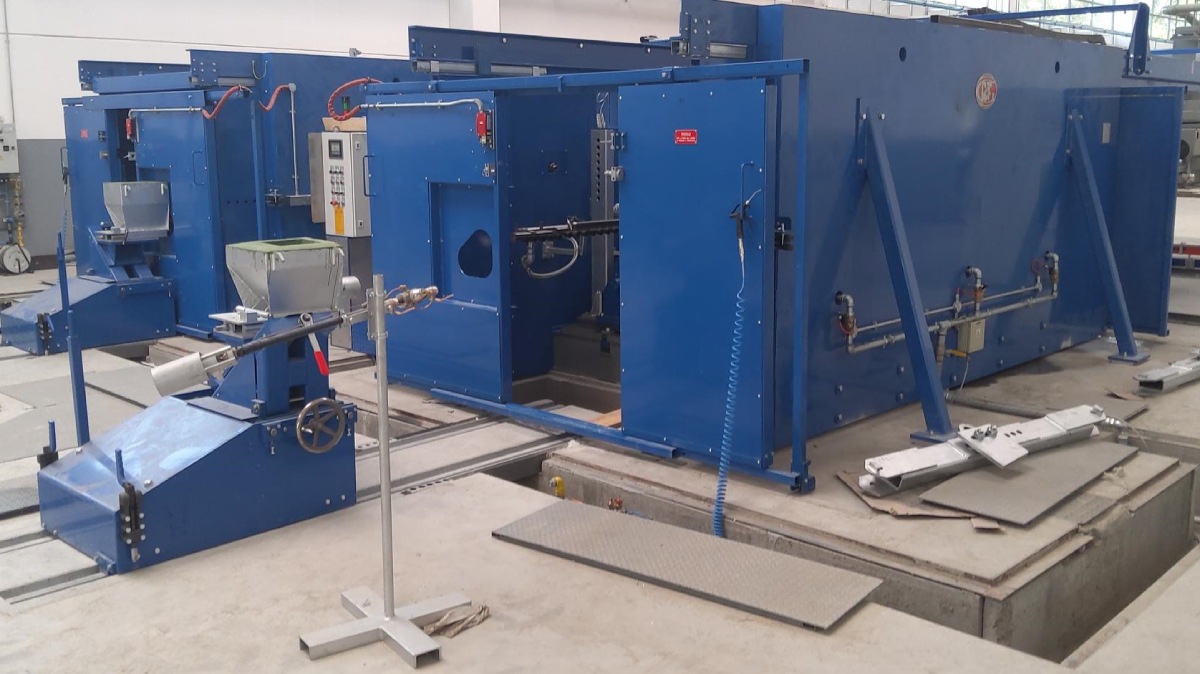

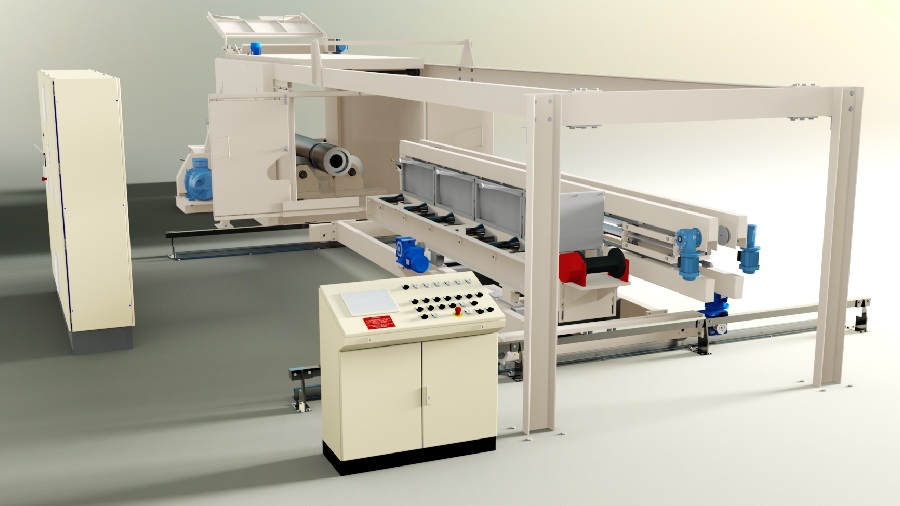

The GCRH A range of horizontal centrifugal casting machines are a heavy duty machine with adjustable roller centers, ideal when flexibility is required with length and diameter of castings. This is a semi automatic machine and can be used in the production of reformer tubes and roll sleeves.
Model | Mould min & max dia mm | Mould length mm | Total load including mould |
---|---|---|---|
GCRH 0A | 350 - 450 | 1000 - 2000 | 3500 kg |
GCRH 1A | 400 - 600 | 1500 - 3000 | 7000 kg |
GCRH 2A | 600 - 800 | 3000 - 4000 | 10000 kg |
GCRH 3A | 700 - 1000 | 3000 - 6000 | 15000 kg |
GCRH 4A | 800 - 1200 | 4000 - 8000 | 25000 kg |
GCRH XEA | 1200 - 2200 | 3000 - 7000 | 80000 KG |

Other variations available on request, weights and sizes guide only please refer to load speed chart
